DIGITUS Zásuvka Profi STP 2 port, Cat6 na omietku, LSA, biela DN-9006-N Digitus
AT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount
Future-oriented standards and high-end quality for your network.

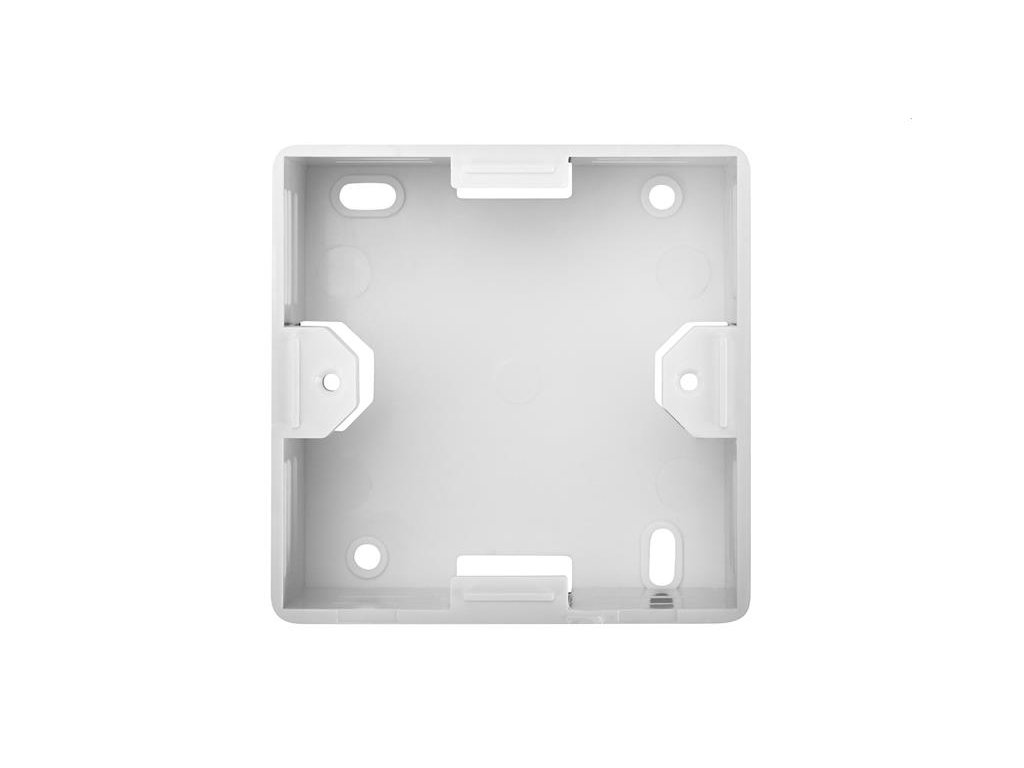

Surface mount design and horizontal cable entry provide a neat and easy accessable installation
Ensured safety due to completely shielded RJ45 sockets and LSA strips
The sockets are angled by 40° which makes the plug in of patch cables very easy
DESCRIPTION
The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takesplace via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.
TECHNICAL DETAILS
Transmission property: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount

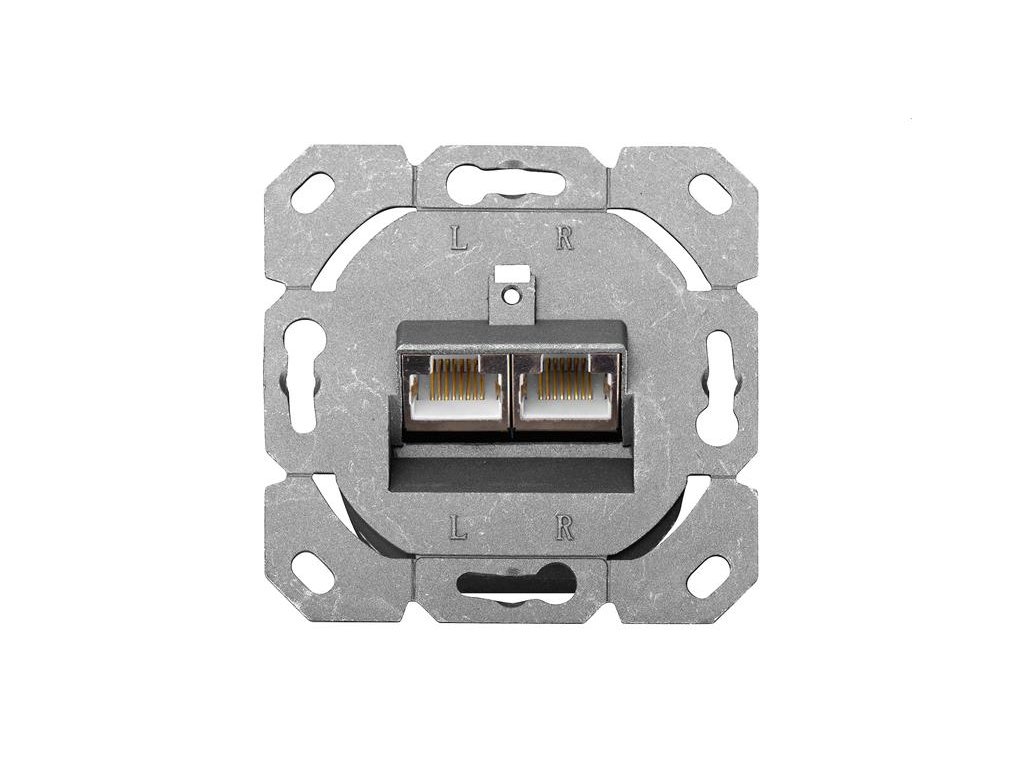

RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Integrated strain relief for installation cables

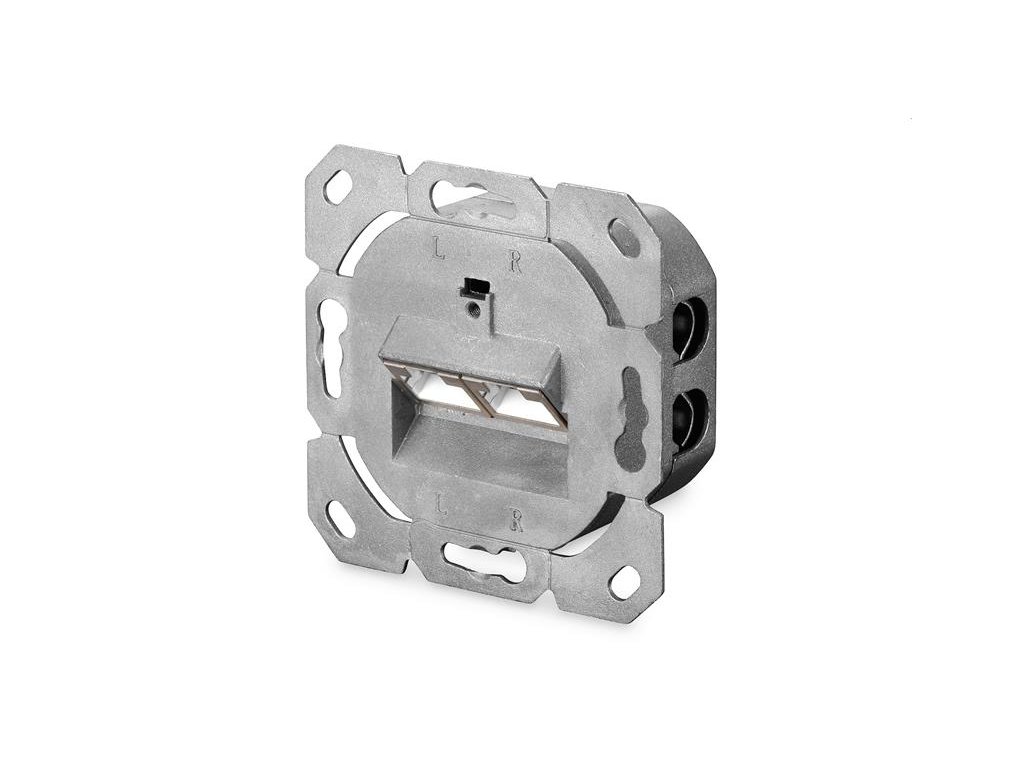

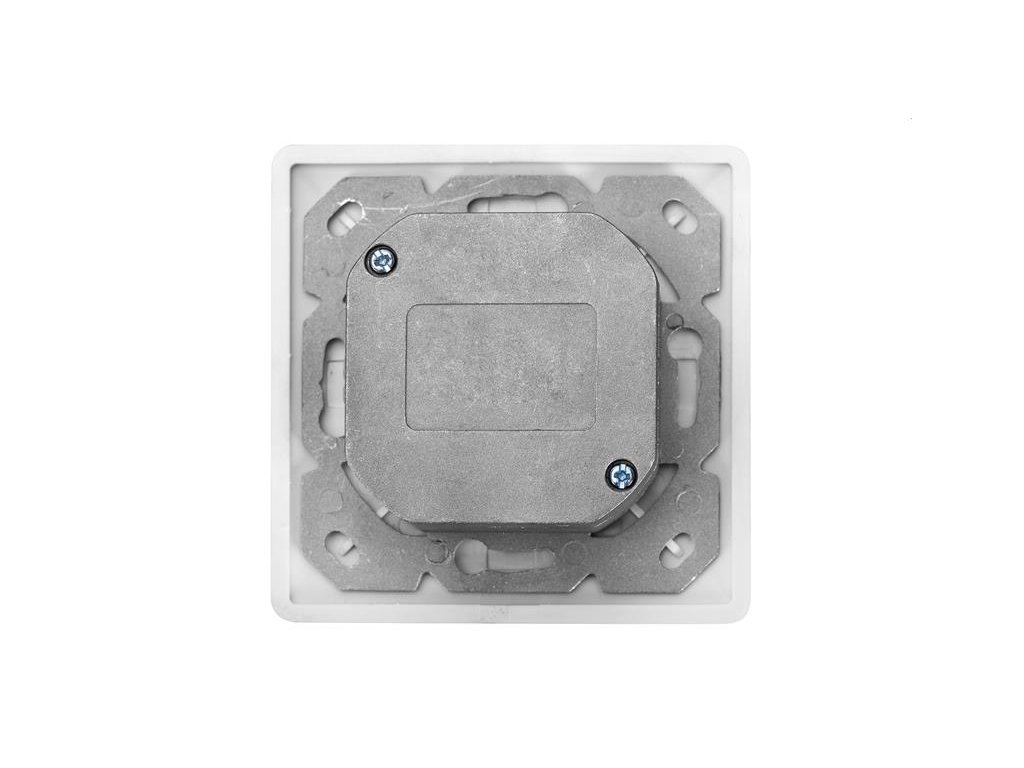

Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
Strain relief 40°-angled female for patch cord
Central plate: 50 x 50 mm
Frame: 80 x 80 mm
Central plate with integrated dust covers
Design compatible to common switch ranges
Technical properties:
Housing material: Die-cast metal
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Not compatible with R&M freenet patch cords
Colour: White RAL9003
Future-oriented standards and high-end quality for your network.
Surface mount design and horizontal cable entry provide a neat and easy accessable installation
Ensured safety due to completely shielded RJ45 sockets and LSA strips
The sockets are angled by 40° which makes the plug in of patch cables very easy
DESCRIPTION
The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takesplace via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.
TECHNICAL DETAILS
Transmission property: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Integrated strain relief for installation cables
Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
Strain relief 40°-angled female for patch cord
Central plate: 50 x 50 mm
Frame: 80 x 80 mm
Central plate with integrated dust covers
Design compatible to common switch ranges
Technical properties:
Housing material: Die-cast metal
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Not compatible with R&M freenet patch cords
Colour: White RAL9003
Dodatočné parametre
| Kategória: | Konektory a zásuvky |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.18 kg |
