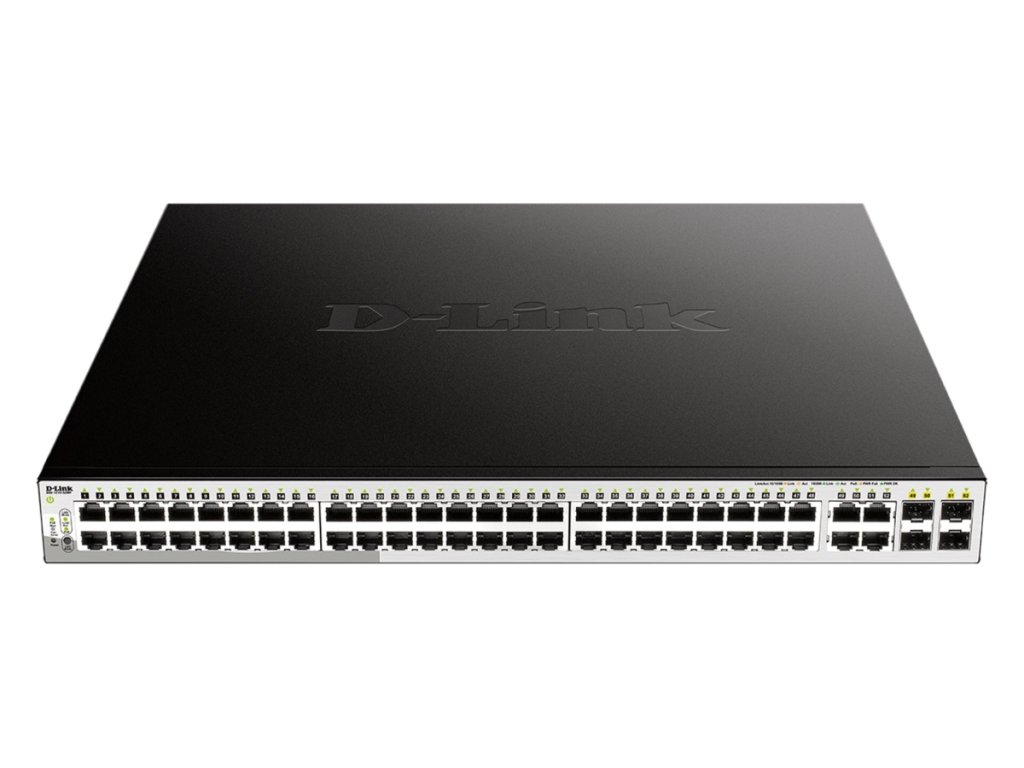

D-Link DGS-1210-52MP L2/L3 Smart+ PoE switch, 48x GbE PoE+, 4x RJ45/SFP, PoE 370W DGS-1210-52MP-E
DGS-1210-52MP: 52-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (48 x PoE ports, fan)
Features
Green Technology
Power saving via the following features:
Link Status detection
LED Shut-Off
Port Shut-Off
System Hibernation
Time-based PoE (DGS-1210-10P/28P/52P/52MP only)
Security Features
Access Control List secures network
D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
Port Security supports 64 MACs per port
ARP Spoofing Prevention
Intuitive Management
D-Link Network Assistant Utility or Web-based GUI
Built-in SNMP MIB for remote NMS (D-View 6.0)
Compact CLI through Telnet
Advanced Features
Auto Surveillance VLAN
Loopback Detection automatically disables a port when a loop is detected
Cable Diagnostics allows administrators to determine cable status
SFP ports for flexibility
Auto MDI/MDIX
Interface
Number of 10/100/1000BASE-TX ports
DGS-1210-52/52P/52MP - 48 ports
Number of SFP ports
DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports
PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
DGS-1210-52MP (802.3af/802.3at/52 ports/370W)
Performance
Switch Capacity
DGS-1210-52/52P/52MP - 104 Gbps
64-Byte Packet Forwarding Rate
DGS-1210-52/52P/52MP - 77.4 Mpps
MAC Address Table Size
16K
Packet Buffer
DGS-1210-52/52P/52MP - 3 MB per device
Jumbo Frame
Up to 9,216 Bytes
Physical & Environmental
Power Consumption (Standby/Maximum)
DGS-1210-52MP - 48.9W / 483.1W (PoE)

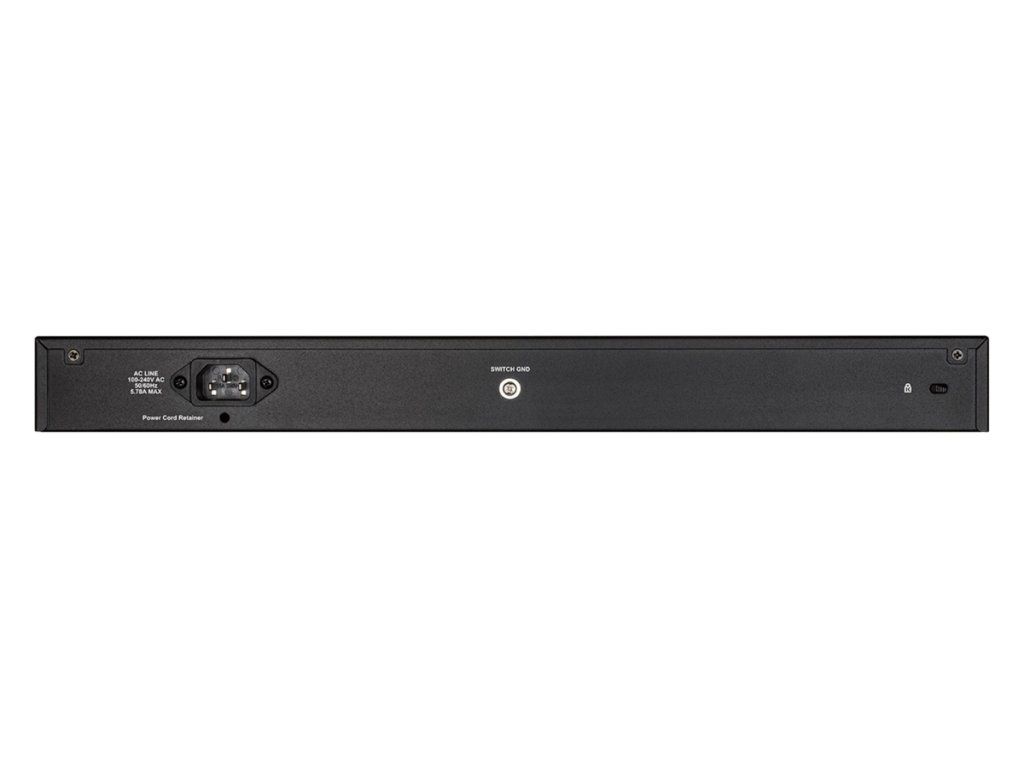

Power Input
10 to 240 VAC, 50/60HZ internal universal power supply
Dimensions (W x D x H)
DGS-1210-52MP - 440 x 430 x 44 mm
Weight
DGS-1210-52MP - 5.78 kg
Ventilation
DGS-1210-52MP - smart fans
Heat Dissipation
DGS-1210-52MP - 1,648.23 BTU per hour
Temperature
Operating: -5° to 50°C (23° to 112°F)
Storage: -20° to 70°C (-4° to 158°F )
Humidity
Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing
Certification
CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
Software Feature
L2 Features
MAC Address Table
16K entries
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
DGS-1210 28/28P/28MP: Maximum of 14 groups/8 ports per group
DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
Up to 9,216 bytes
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP (for DGS-1210-28MP only)
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group
Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
L3 Features
IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)
Static Routing (for DGS-1210-28MP only)
64 IPv4 Static Route Entries
32 IPv4 Static Route Entries
Access Control List (ACL)
Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv6
Each rule can only be associated with a single port
ACL based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class
Security
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
Max. 64 entries
Traffic Segmentation
SSH v2
SSL
Supports v1/v2/v3
Port Security
Supports up to 64 MAC addresses per port
Duplicate address detection
AAA
802.1X Authentication
Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
IPv6 RADIUS Server
Support MD5 authentication
MIB/RFC Standards
RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB
OAM
Cable Diagnostics
Factory Reset
Management
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
Supports v1/v2c/v3
SNMP Trap
Backup/Upgrade firmware
Smart Wizard
Upload/Download Configuration file
System Log
Max. 500 log entries
BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time Setting
SNTP
RMONv1
Trusted Host
Green V3.0 Technology
Power Saving by:
Link Status
Time-based PoE: PoE ports can be turned on/off by port or system through schedule
LED Shutoff
System Hibernation
Port Shutoff
