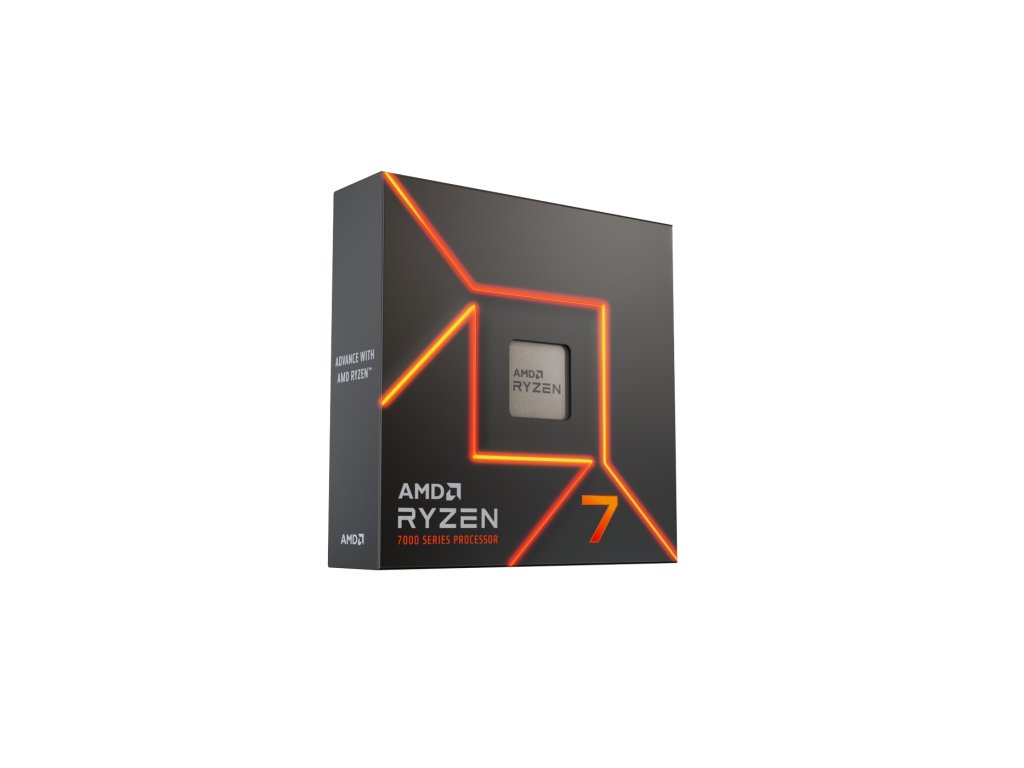

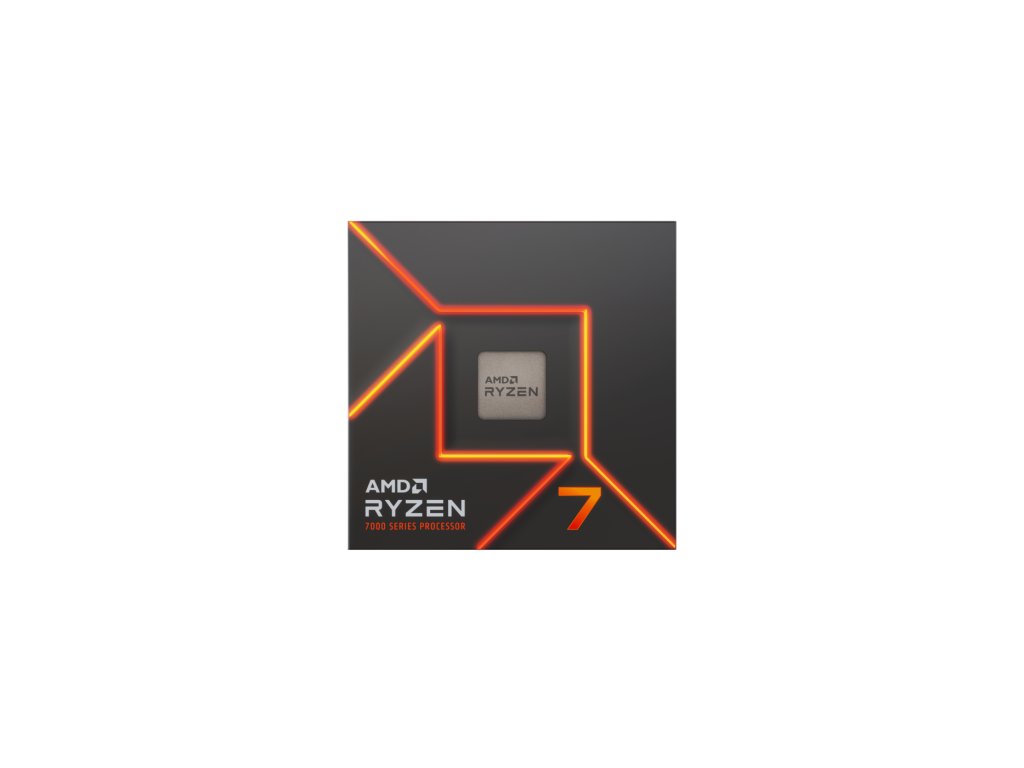

CPU AMD RYZEN 7 7700X WOF, 8-core, 4.5GHz, 32MB cache, 105W, socket AM5, BOX 100-100000591WOF

AMD Ryzen™ 7 7700X
General Specifications
Regional Availability
Global
Platform
Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 7 Processors
# of CPU Cores
8
# of Threads
16
Max. Boost Clock
Up to 5.4GHz
Base Clock
4.5GHz
L1 Cache
512KB
L2 Cache
8MB
L3 Cache
32MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM5
Thermal Solution (PIB)
Not included
Recommended Cooler
Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
Launch Date
9/27/2022
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version
PCIe® 5.0
System Memory Type
DDR5
Memory Channels
2
Max Memory Speed
2x1R

DDR5-5200
2x2R

DDR5-5200
4x1R

DDR5-3600
4x2R

DDR5-3600
Graphics Capabilities
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
Product IDs
Product ID Boxed
100-100000591WOF
Product ID Tray
100-000000591
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
