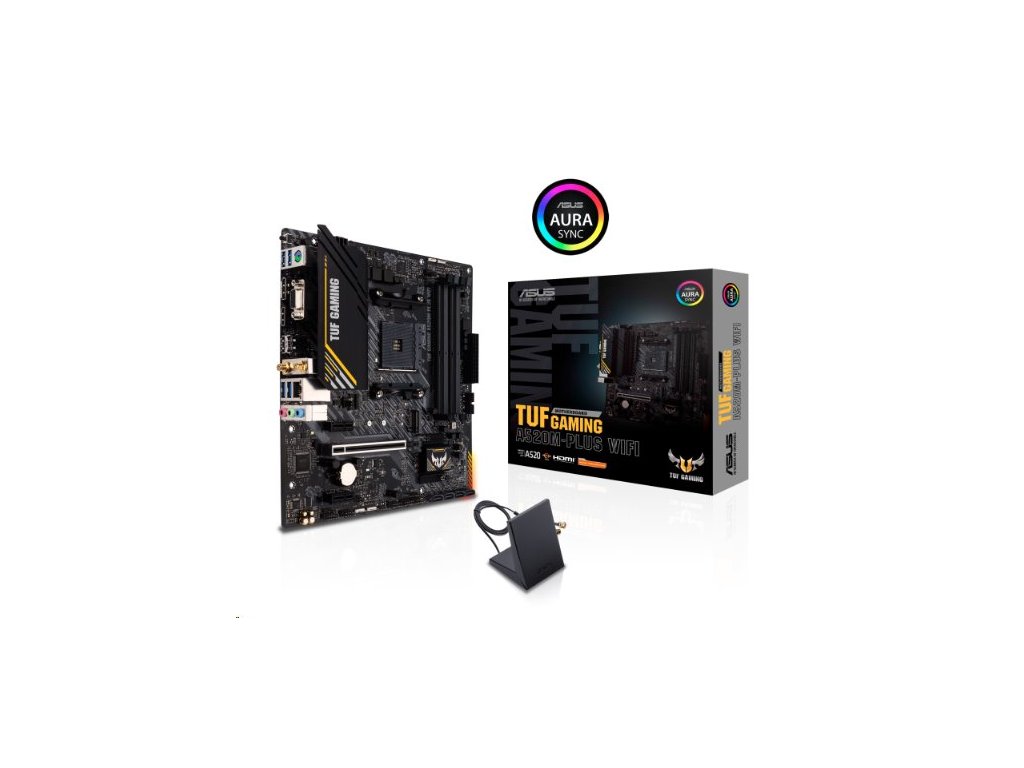

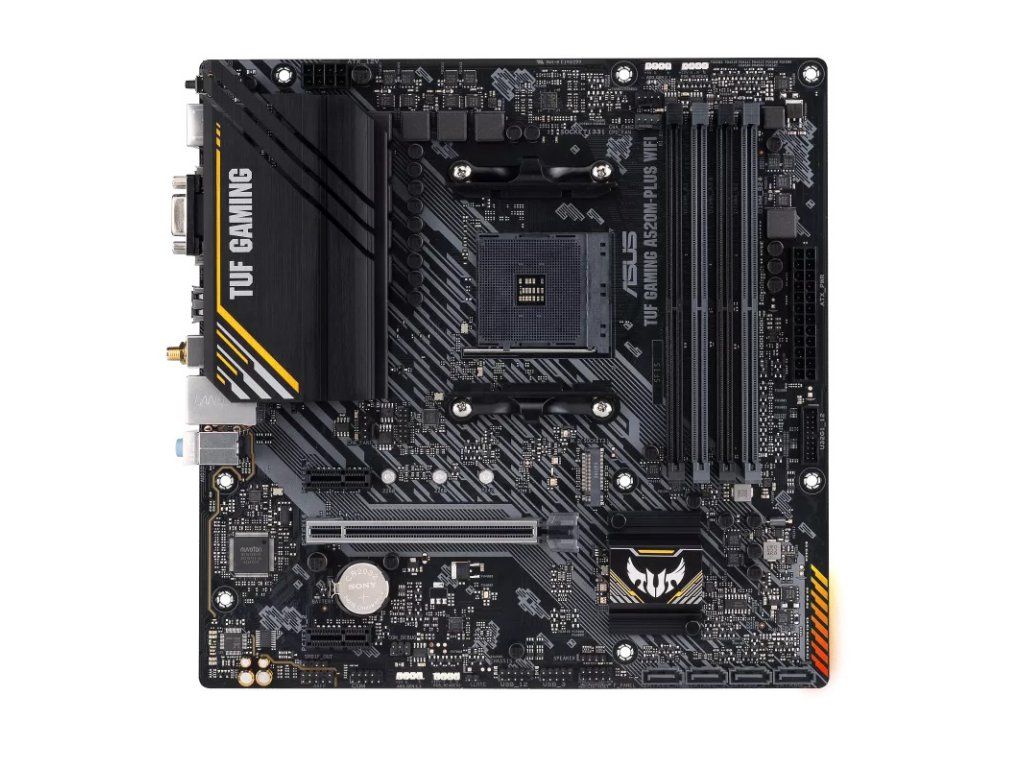

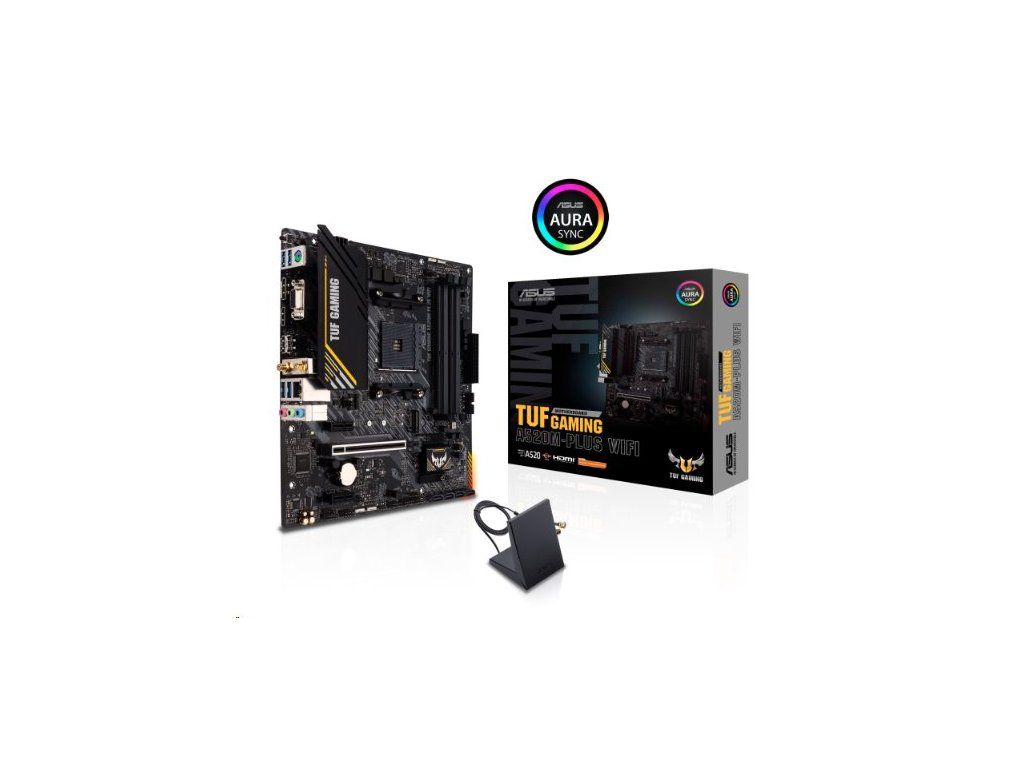

ASUS TUF GAMING A520M-PLUS WIFI soc.AM4 A520 DDR4 mATX M.2 D-Sub DVI HDMI 90MB17F0-M0EAY0 Asus

Popis produktu

Herná základná doska AMD A520 (Ryzen AM4) micro ATX s podporou M.2, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, porty USB 3.2 Gen 1, SATA 6 Gb/s a adresovateľné záhlavia AURA Gen 2
Patice AMD AM4: Pripravené pre stolné procesory Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series
Komplexné chladenie: Veľký chladič VRM, chladič PCH, Fan Xpert 2+
Vyrobené pre online hranie: 802.11ac Wi-Fi, TUF LANGuard a technológia TurboLAN
Aura Sync RGB: Zabudované hlavičky RGB a adresovateľné hlavičky Gen 2 pre RGB LED pásiky, ktoré sa ľahko synchronizujú s hardvérom s podporou Aura Sync


CPU
AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Processors *
* Refer to www.asus.com for CPU support list

Chipset
AMD A520

Memory
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor

Graphic
1 x DisplayPort 1.2
1 x HDMITM 2.1(4K@60Hz)
1 x D-Sub
*Graphics specifications may vary between CPU types.

Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

LAN
1 x Realtek 1Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Realtek Wi-Fi 5 8821CE
1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
Supports dual frequency band 2.4/5GHz
Supports channel bandwidth: HT20/HT40/HT80
Bluetooth v5.0

Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design

Back I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Ports
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Key E screw package(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PXE

Operating System
Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
