ASUS ROG STRIX B650-A GAMING WIFI 90MB1BP0-M0EAY0 Asus

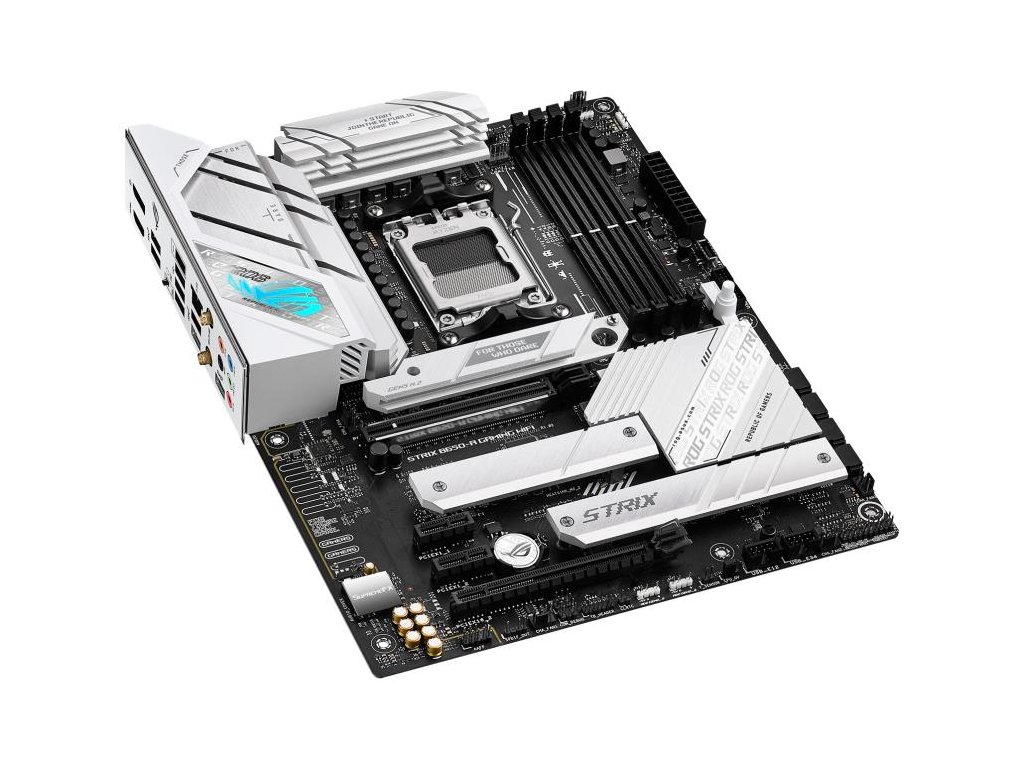

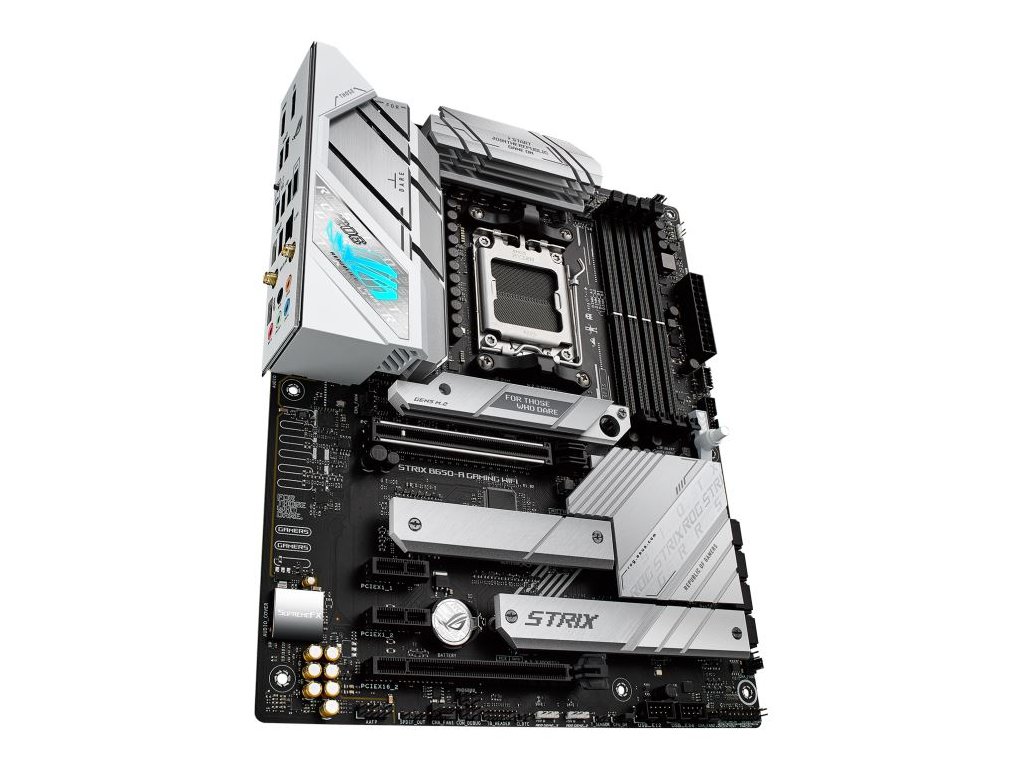

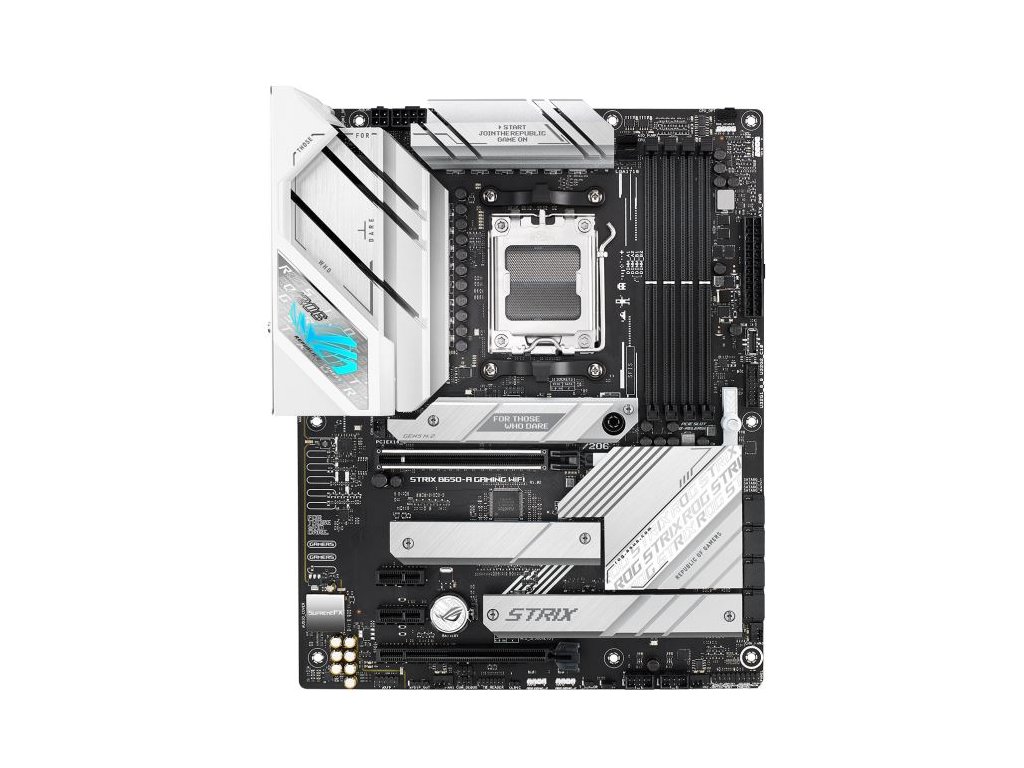

ROG Strix B650-A Gaming WiFi

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.

Click to check our B650 Motherboard Guide
RYZEN AMD, AMD SOCKET AMS B650 logos 1 MONTH FREE Adobe Creative Cloud

ROG STRIX B650-A GAMING WIFI

CPU
AM5 Socket for AMD Ryzen™ Desktop Processorss*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
2 x PCIe 4.0/3.0 x1 slots
* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s port
*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
USB
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

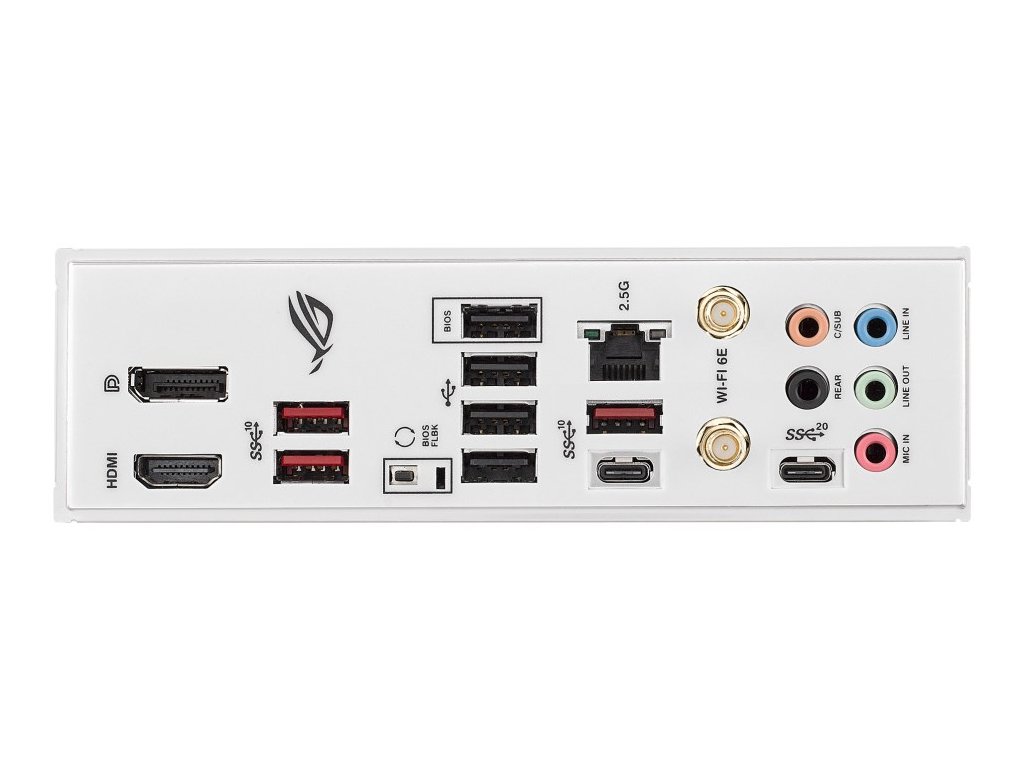

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

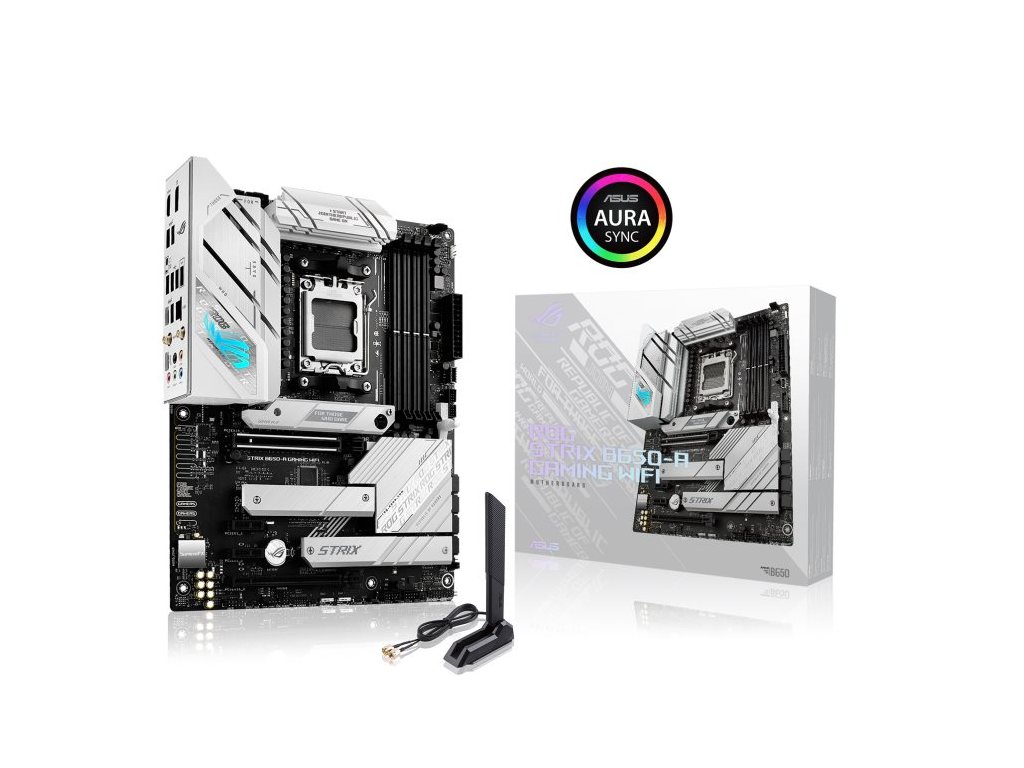

Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous

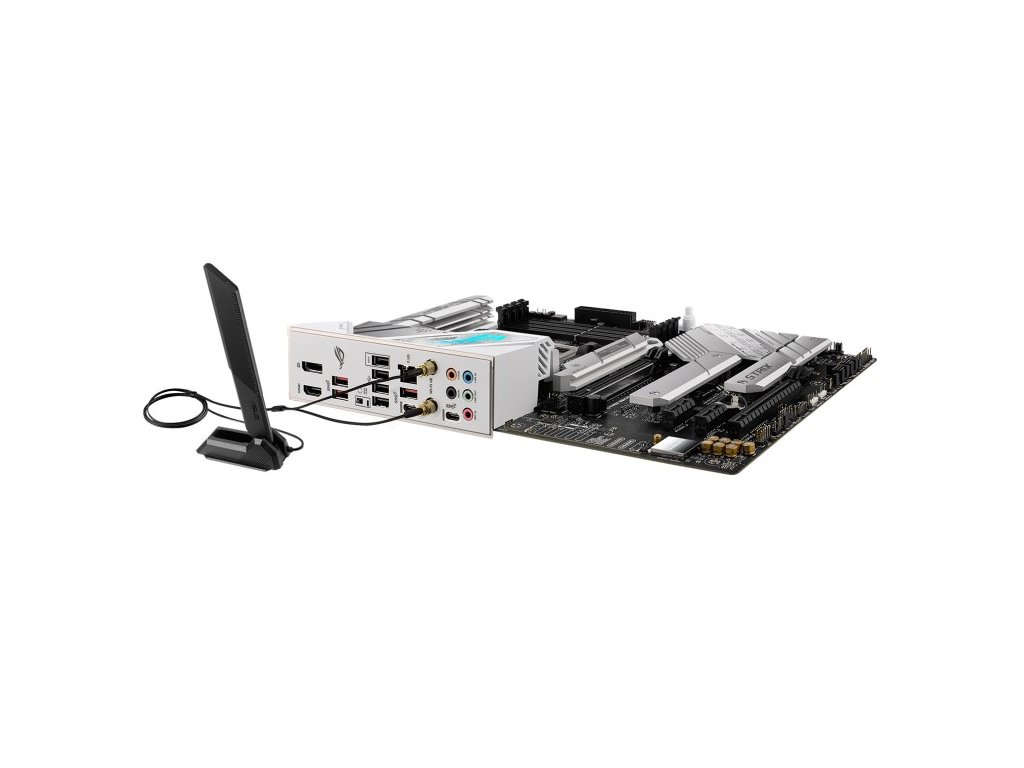

1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation
1 x User guide
Operating System
Windows® 11 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
