ASUS Prime AP-850G zdroj/Gold 90YE00U0-B0NA00 Asus

Popis produktu

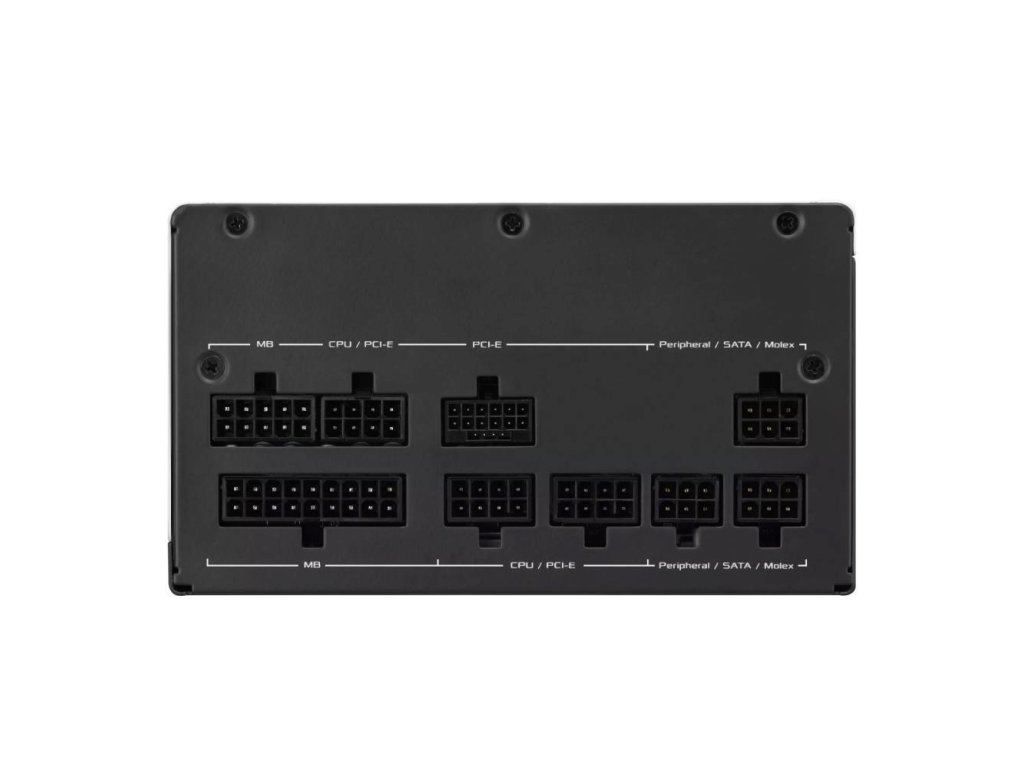

ASUS Prime AP-750G Gold Intel Form Factor: ATX12V PFC Typ: aktivní ATX Standard: ATX 3.1 Rozměry: 150 x 150 x 86 mm Účinnost: 80Plus Gold MTBF: >120,000 hrs @ 25°C Ochrana: OPP/OVP/UVP/SCP/OCP/OTP AC vstupní rozsah: 100-240Vac Výstupní napětí DC: +3.3V +5V +12V -12V +5Vsb Maximální zatížení: 20A20A70.5A 0.3A 2.5A Kombinované zatížení: 110W 110W 846W 3.6W 12.5W Celkový výkon: 850W Konektory: MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 Balení obsahuje: Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1
