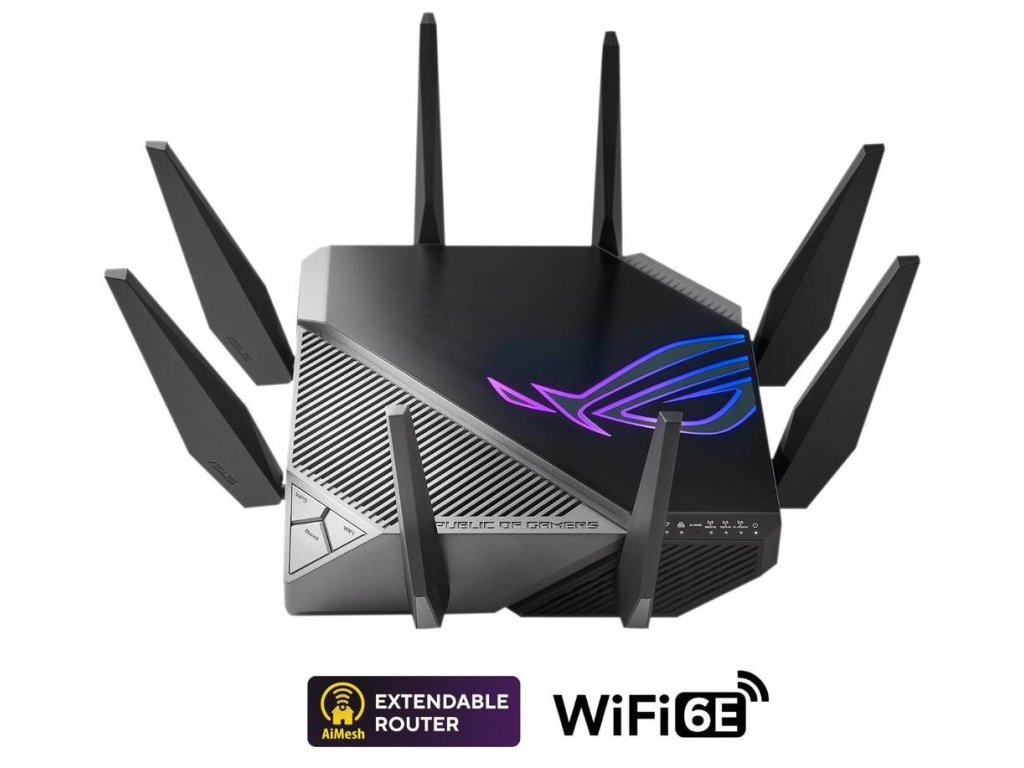

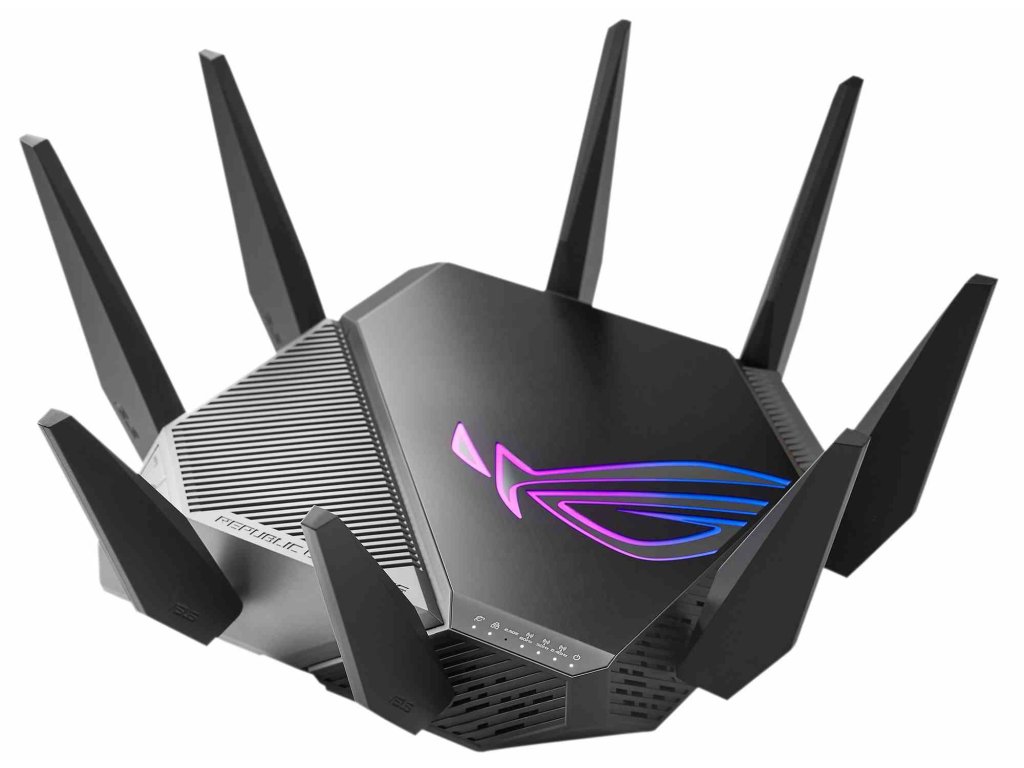

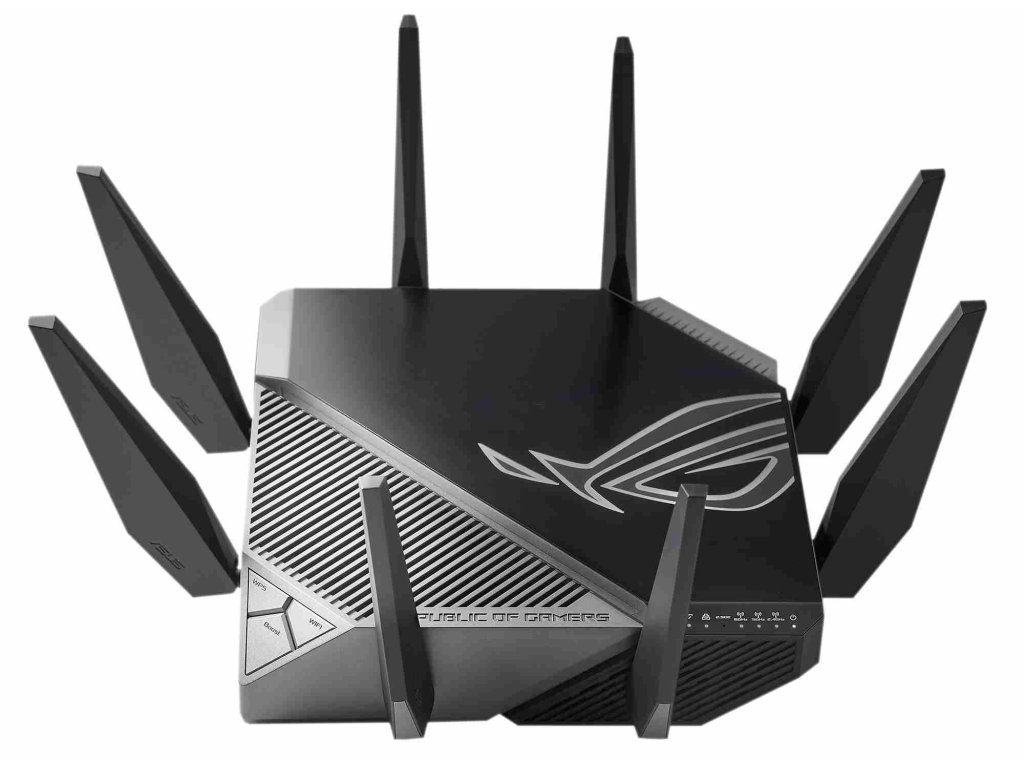

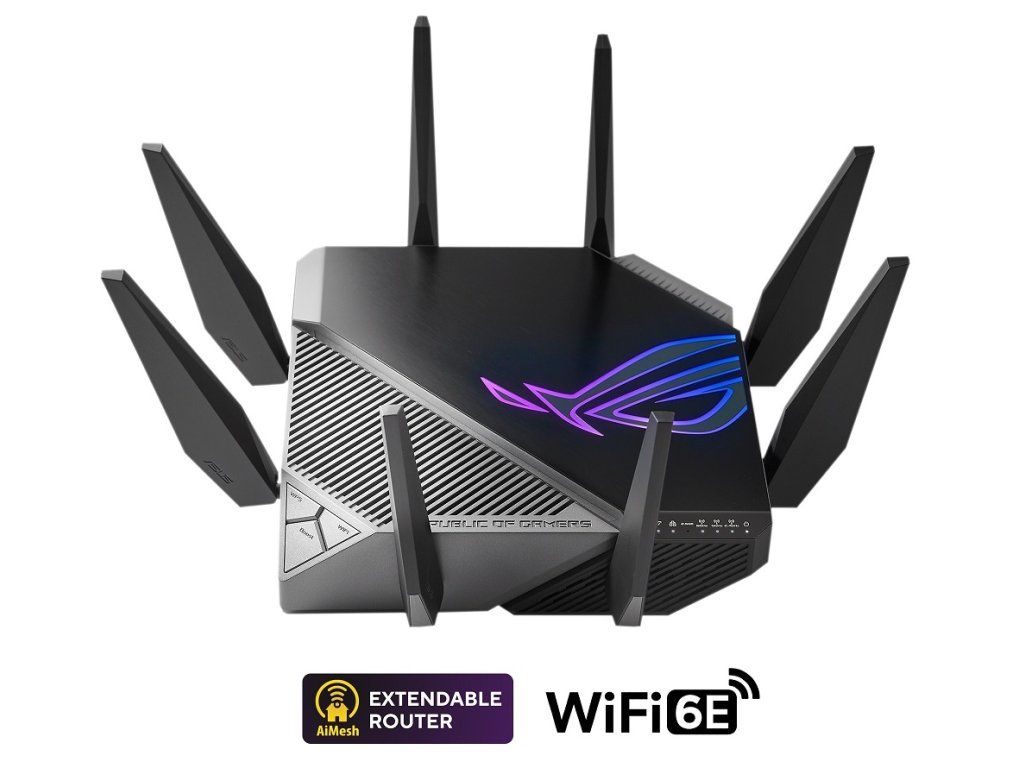

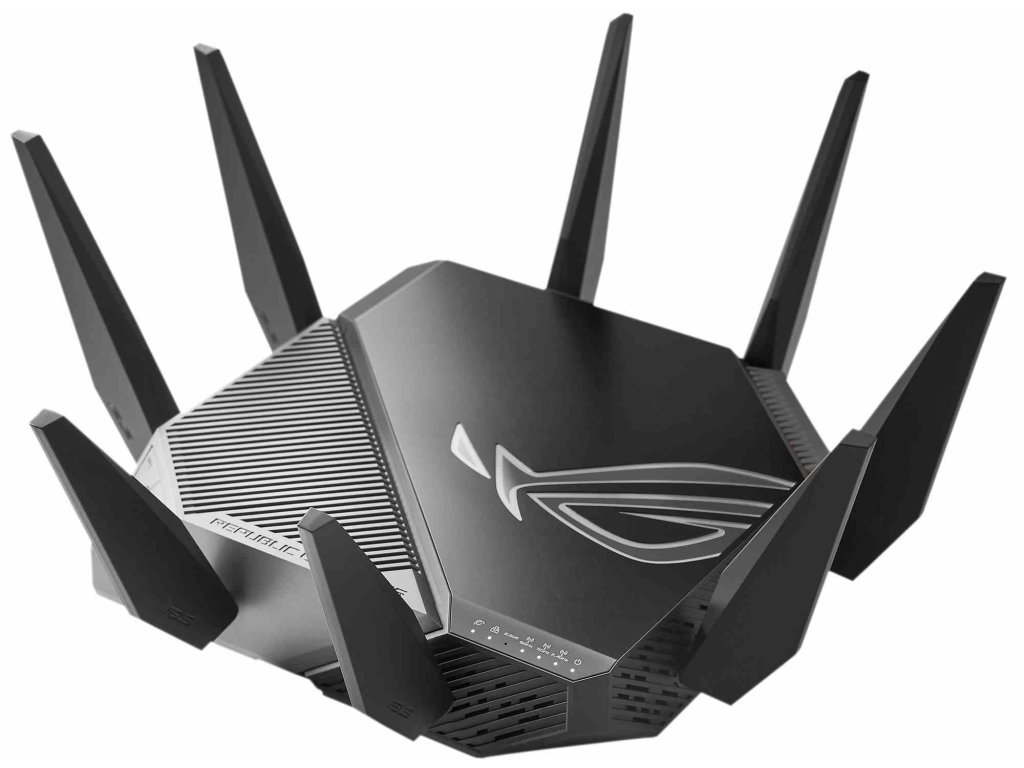

ASUS GT-AXE11000 90IG06E0-MO1R00 Asus

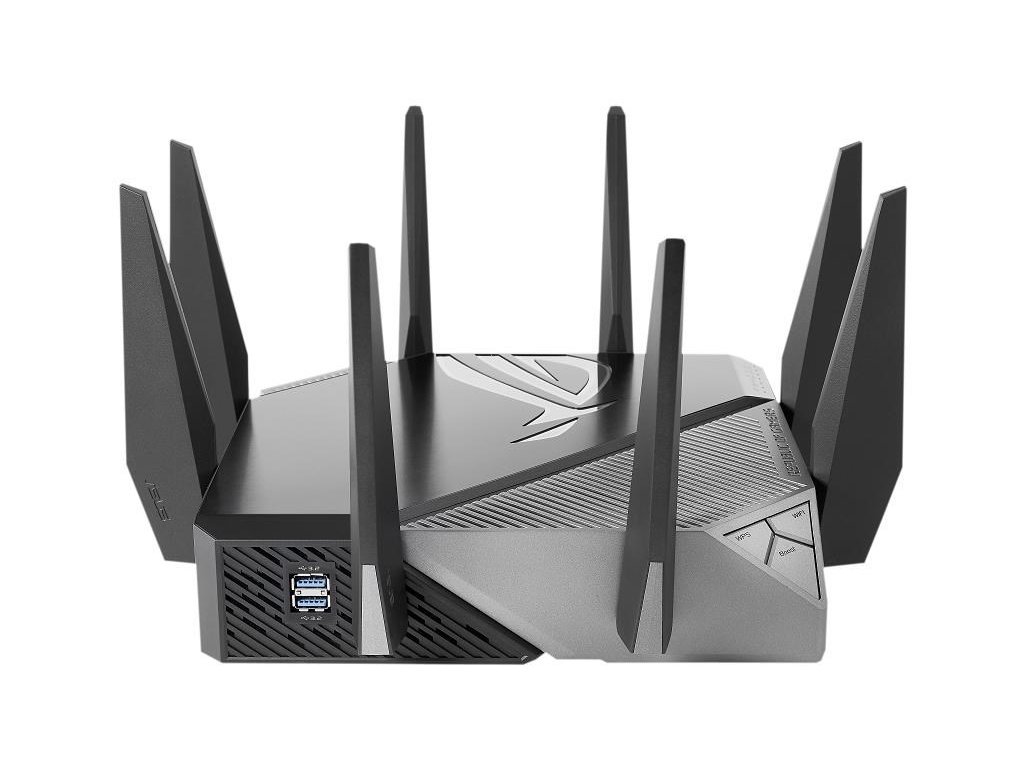

ROG Rapture GT-AX11000
AX11000 Tri-band WiFi 6 Gaming Router –World's first 10 Gigabit WiFi router with a quad-core CPU, PS5 compatible, 2.5G port, DFS band, Adaptive QoS, AiMesh for mesh wifi system and free network security

Next-Gen WiFi Standard - 802.11ax WiFi standard for better efficiency, throughput and range.
Ultrafast WiFi Speed - 11000Mbps WiFi speed to handle even the busiest network with ease.
Triple-level Game Acceleration – Accelerate game traffic every step of the way - from device to game server.
Battle-ready-hardware – 1.8GHz quad-core CPU and 2.5GBase -T port for ultimate performance.
Front-line Network Security – Neutralize internet threats before they hit your network.

Model

ROG Rapture GT-AX11000

Model Name
GT-AX11000
Network Standard
WiFi 6 (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AX11000 ultimate AX performance
WiFi Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
External antenna x 8
Transmit / Receive
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
Processor
1.8GHz quad-core processor
Memory
256MB NAND flash and 1GB DDR3 SDRAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth


* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
Tri-band Wi-Fi
Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

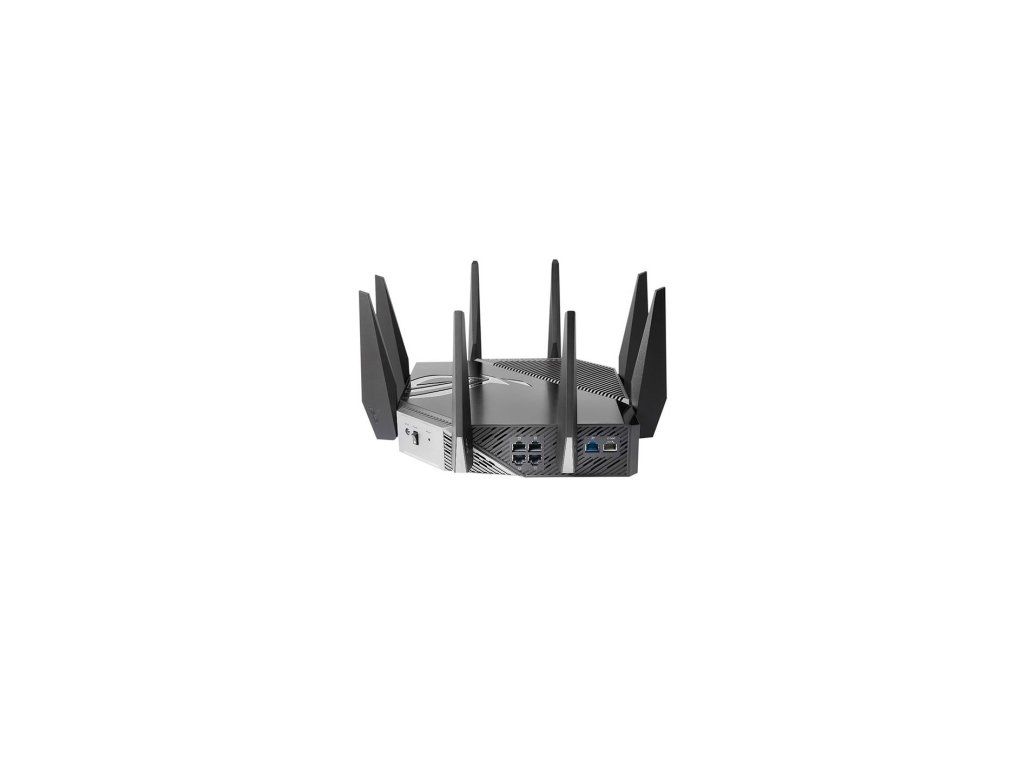

I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, Multi-Gig Ethernet port 2.5G/1G x1
USB 3.1 Gen 1 x 2
Buttons
WPS Button, Reset Button, Power Button, Wireless on/off Button, Boost Key
LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
USB x 2
WPS x 1
2.5G Port x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 3.42 A current

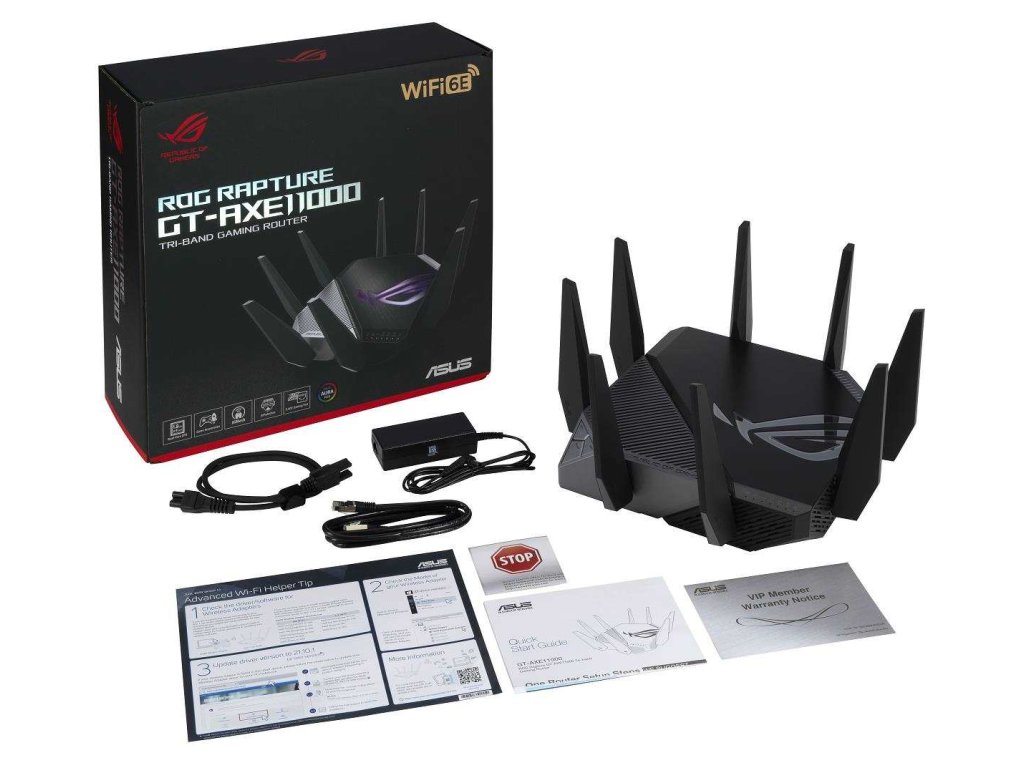

Package Content
GT-AX11000 Extreme Gaming Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1500 g
Product Dimensions
240*240*70 mm

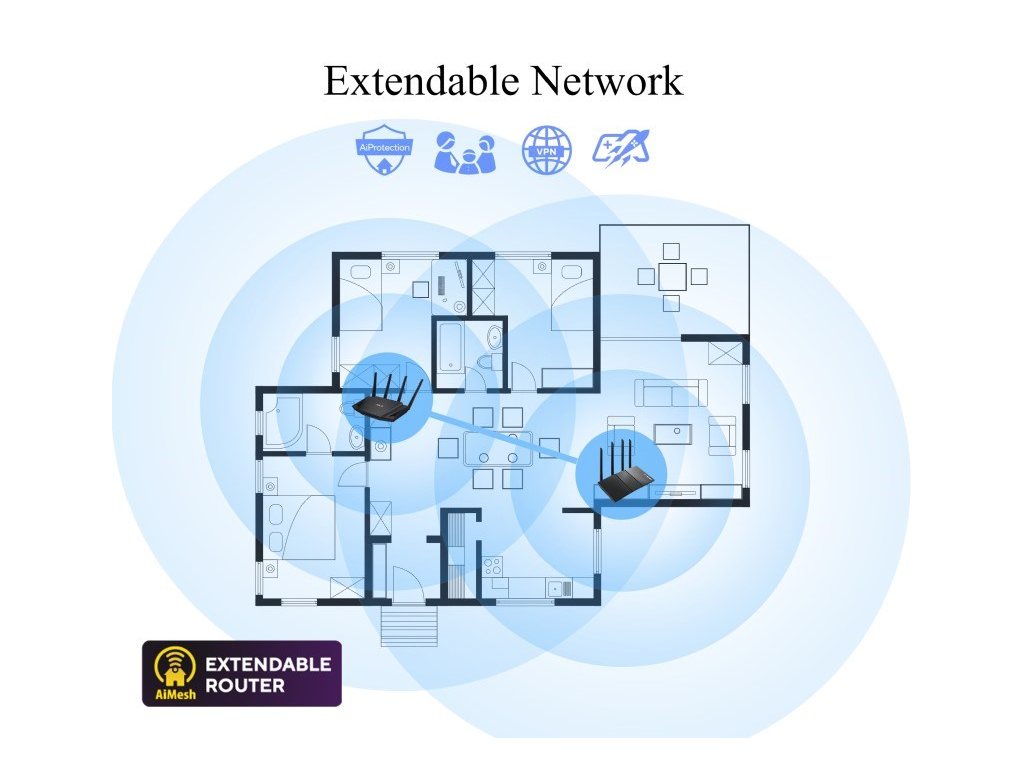

AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming Port
Parental Control
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 16
• Maximum Parental Control content filter rule : 16
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz-1 x3, 5GHz2 x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
Security
WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
SSH
Firewall
• Maximum Firewall Keyword Filter : 32
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
Operating system : ASUSWRT
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
Smart Home
Support IFTTT
