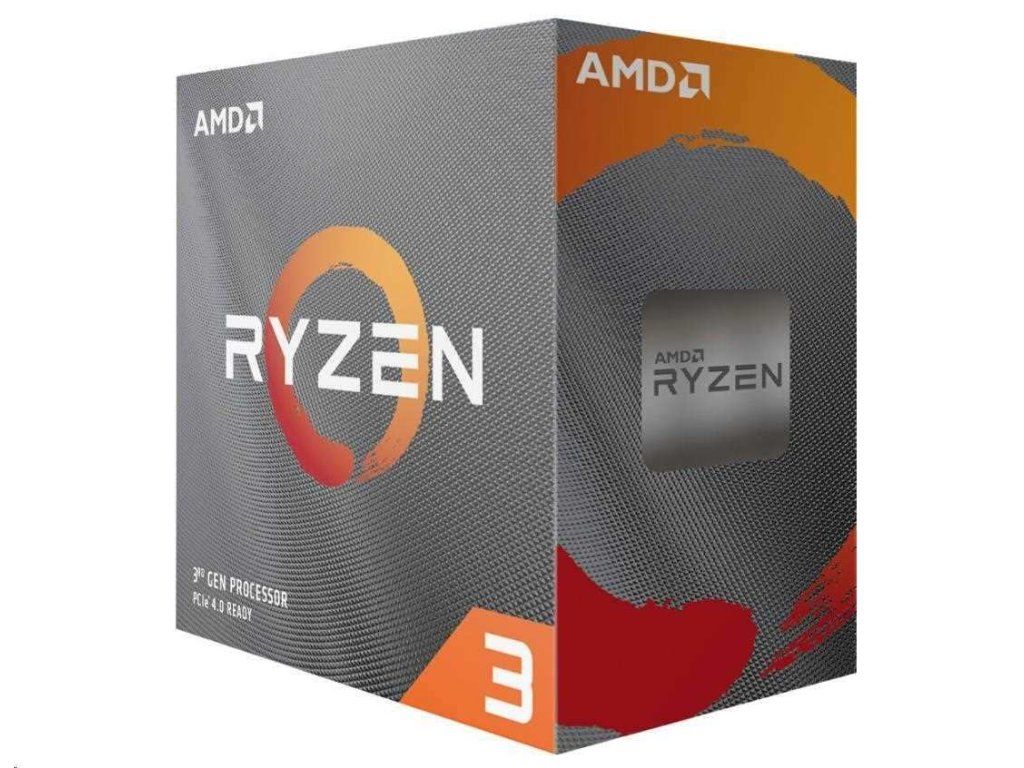

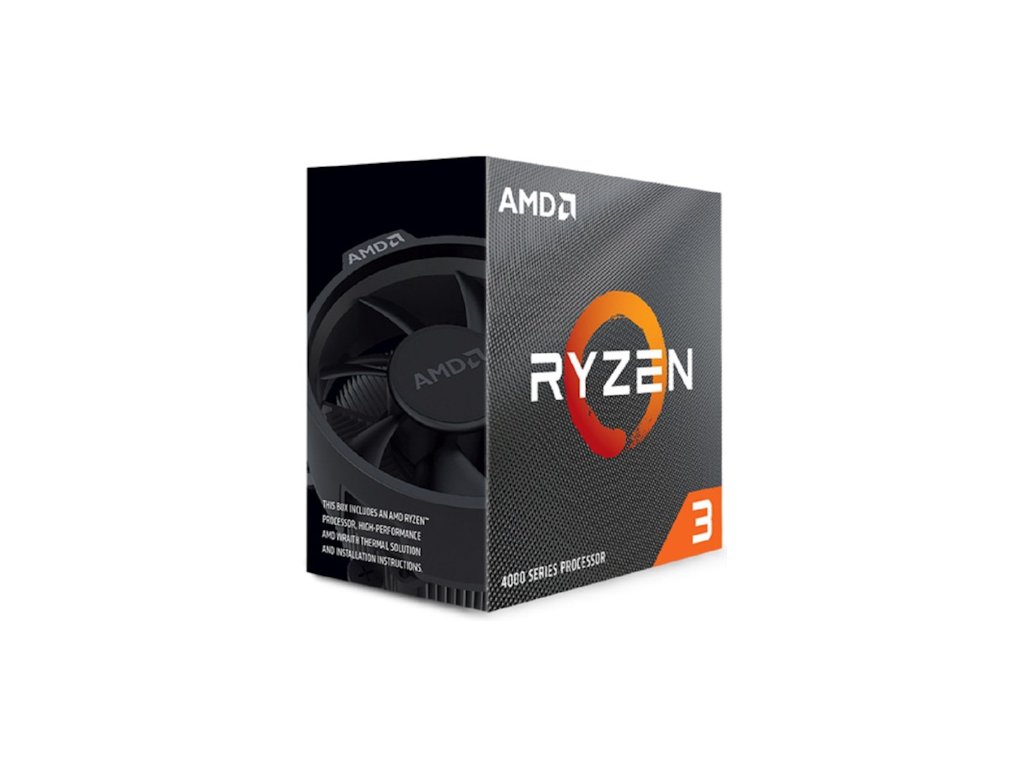

AMD/Ryzen 3 4200/4-Core/4,0GHz/AM4/BOX 100-100000510BOX

General Specifications
Platform
Desktop
Market Segment
Mainstream Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 3 Desktop Processors
Consumer Use
Yes
Regional Availability
Global, China, NA, EMEA, APJ, LATAM
Former Codename
"Renoir"
Architecture
"Zen 2"
# of CPU Cores
4
Multithreading (SMT)
Yes
# of Threads
8
Max. Boost Clock
Up to 4.0GHz
Base Clock
3.8GHz
L1 Cache
256KB
L2 Cache
2MB
L3 Cache
4MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
CPU Compute Die (CCD) Size
180mm2
Package Die Count
1
Unlocked for Overclocking
Yes
CPU Socket
AM4
Socket Count
1P
Supporting Chipsets
X570
X470
B550
B450
B350
A520
A320
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
4/4/2022
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
0
Native SATA Ports
2
PCI Express® Version
PCIe 3.0
Native PCIe® Lanes (Total/Usable)
24 / 20
Additional Usable PCIe Lanes from Motherboard
AMD X570

16x Gen 3
AMD X470

2x Gen 3
AMD X470

8x Gen 2
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
System Memory Specification
Up to 3200MT/s
Max Memory Speed
2x1R

DDR4-3200
2x2R

DDR4-3200
4x1R

DDR4-2933
4x2R

DDR4-2667
ECC Support
No
Graphics Capabilities
Integrated Graphics
No
Graphics Model
Discrete Graphics Card Required
Product IDs
Product ID Boxed
100-100000510BOX
Product ID Tray
100-000000510
Key Features
Supported Technologies
AMD StoreMI Technology
AMD "Zen 2" Core Architecture
AMD Ryzen™ VR-Ready Premium
